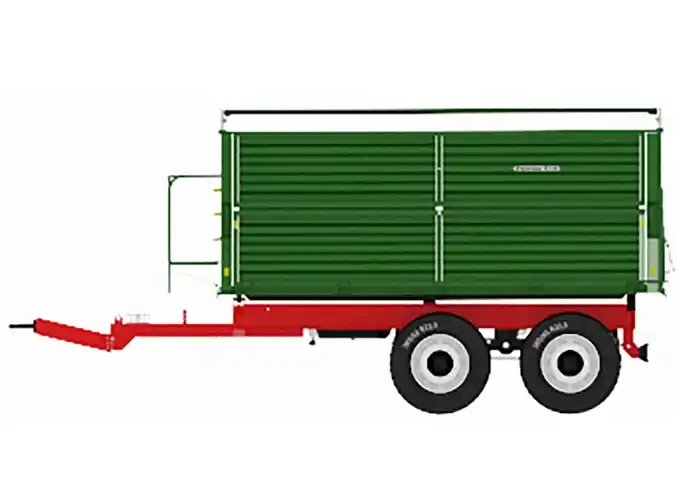

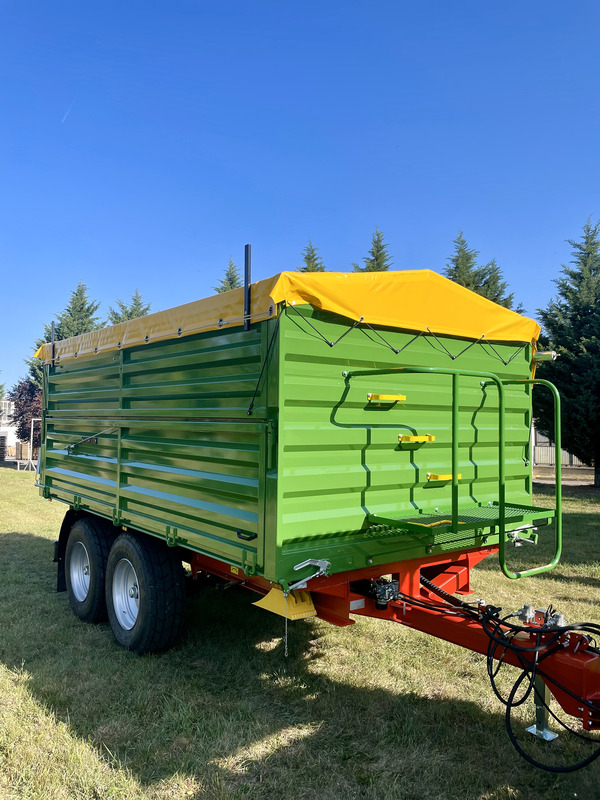

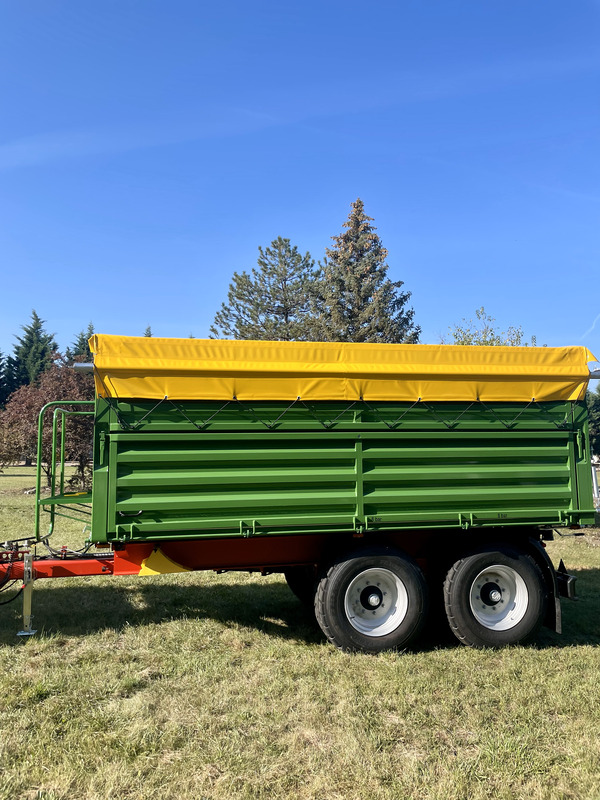

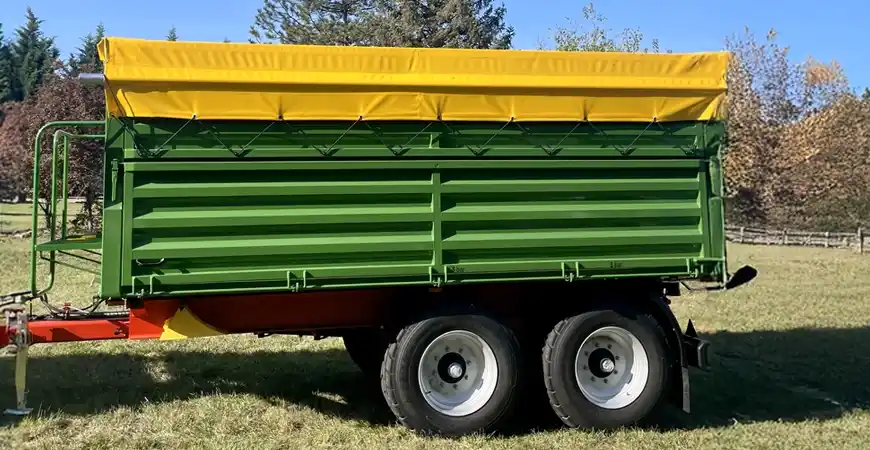

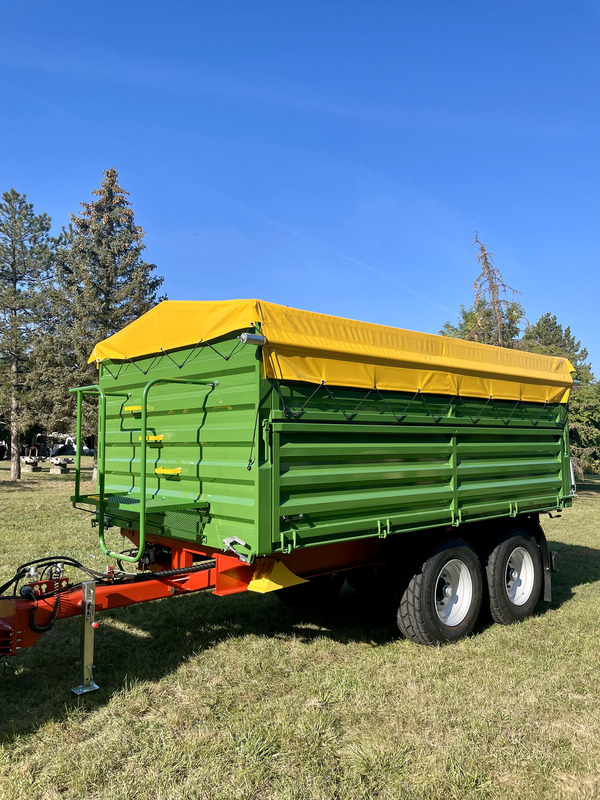

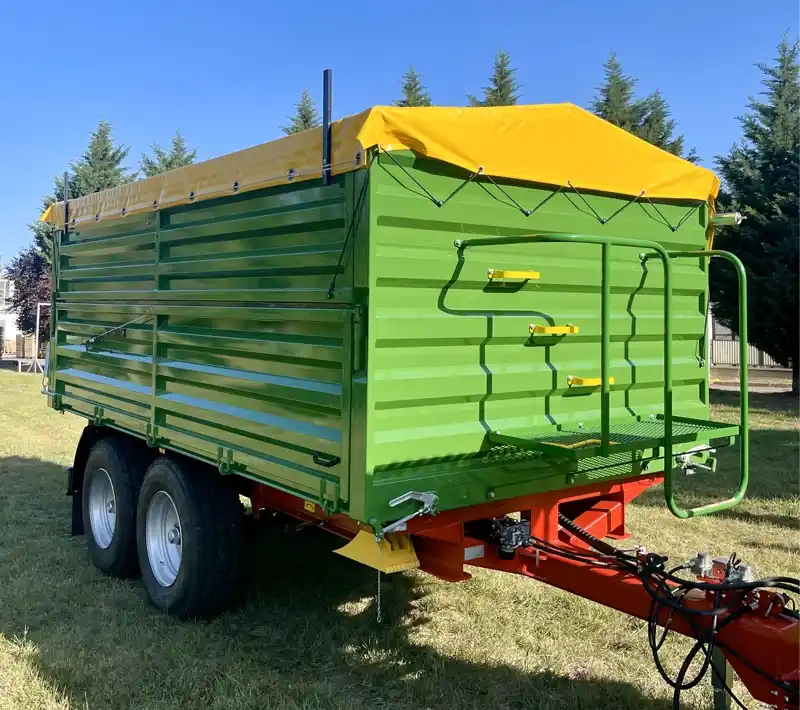

G16 TRAILER

The FURRIER G16 trailer is designed for versatility and large-scale agricultural transport.

. It has a reinforced platform and sidewalls, capable of tipping in three directions. With a tipping limit valve, hydraulic systems, and a robust braking system, the G16 ensures safe and efficient loading and unloading. The trailer`s strong steel chassis and large volume make it ideal for carrying heavy agricultural loads, while its UV-resistant tarp adds extra protection during transit.

Parameters

Parameters

Superstructure features:

  • Welded steel structure made of high-strength steel
  • Reinforced platform design
  • Reinforced sidewalls
  • Can be tipped in three directions (left, right, rear)
  • Sidewalls with multiple opening systems (bottom side opening system and top opening)
  • Podium-style superstructure with barriers
  • Removable extension
  • Tarp support with triangle
  • Foldable tarp support rod
  • Equipped with UV-resistant tarp

Chassis system:

  • Welded steel structure made of high-strength steel
  • BPW axles with drum brakes
  • Parabolic springs
  • Mudguards on the rear axle
  • LED lighting system
  • Rear underrun protection
  • With an automatic hitch head suitable for second trailer towing

Hydraulic system:

  • Superstructure tipping in right, left, and rear directions
  • Tipping limit valve

Brake system:

  • WABCO two-circuit air brake system with automatic brake force regulator
  • Mechanical parking brake

Painting:

  • Paintwork in a professional paint booth with high-quality two-component German paints
  • Superstructure colour: RAL 6010 (John Deere green)
  • Chassis colour: RAL 3013 (red)
  • Platform colour: RAL 9005 (black)
  • Tarp colour: Yellow
