D24 TRAILER

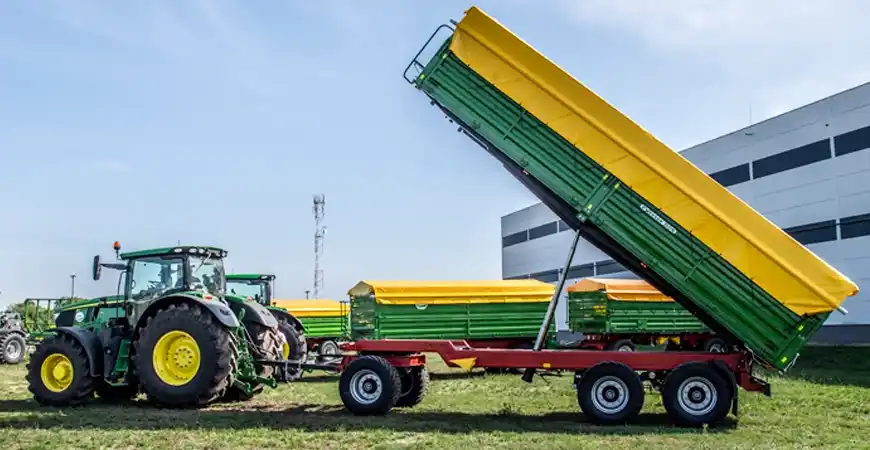

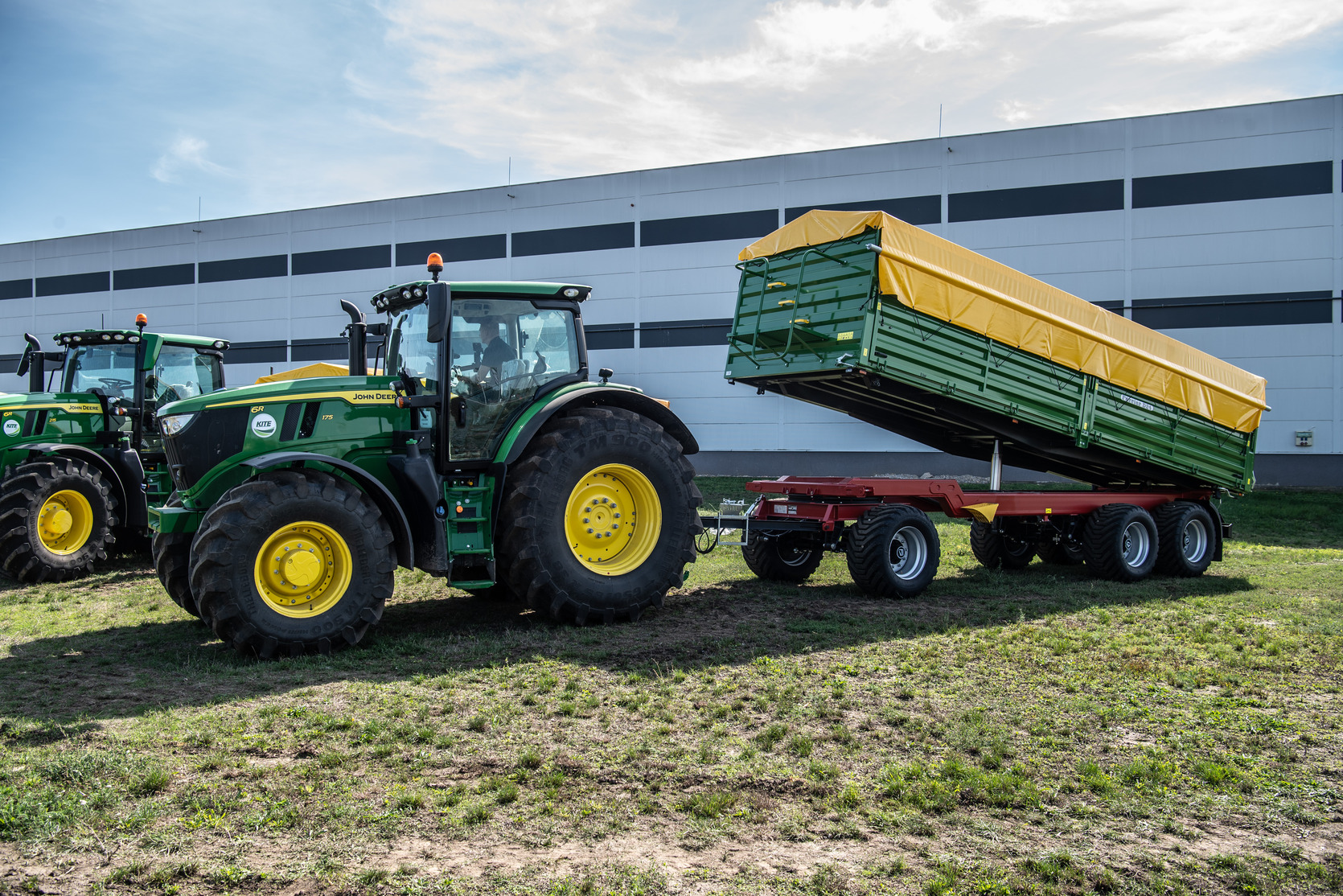

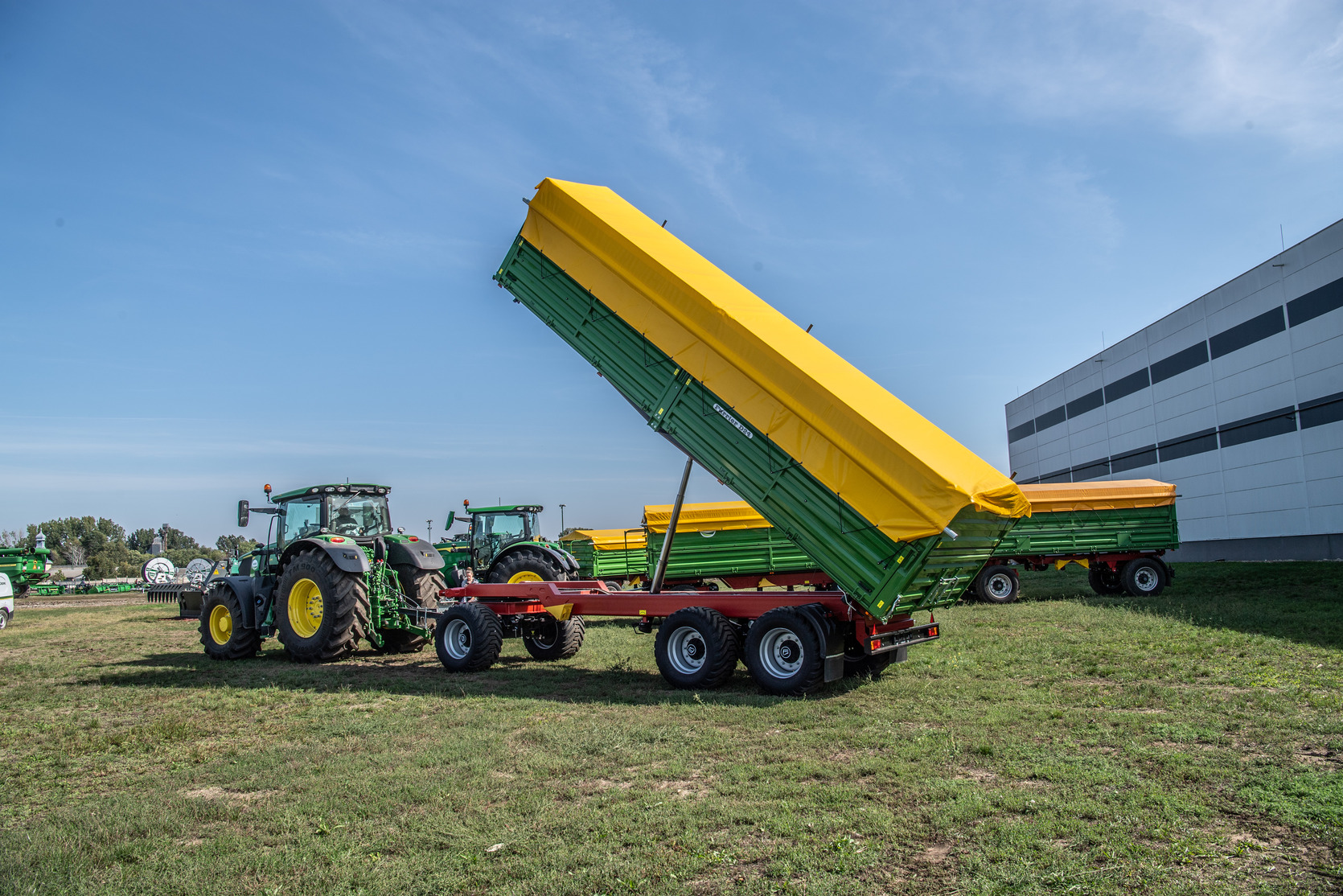

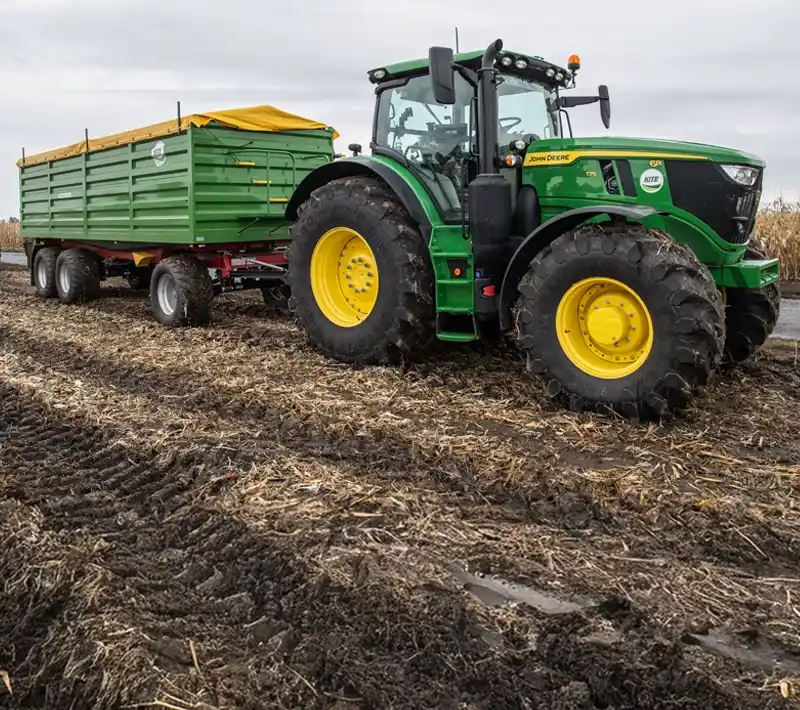

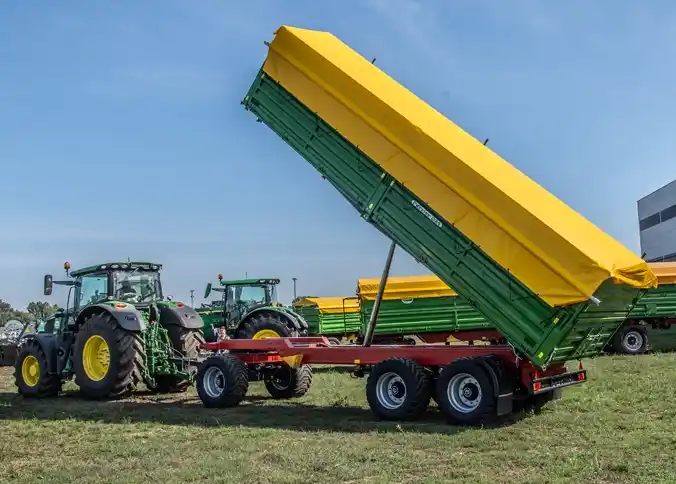

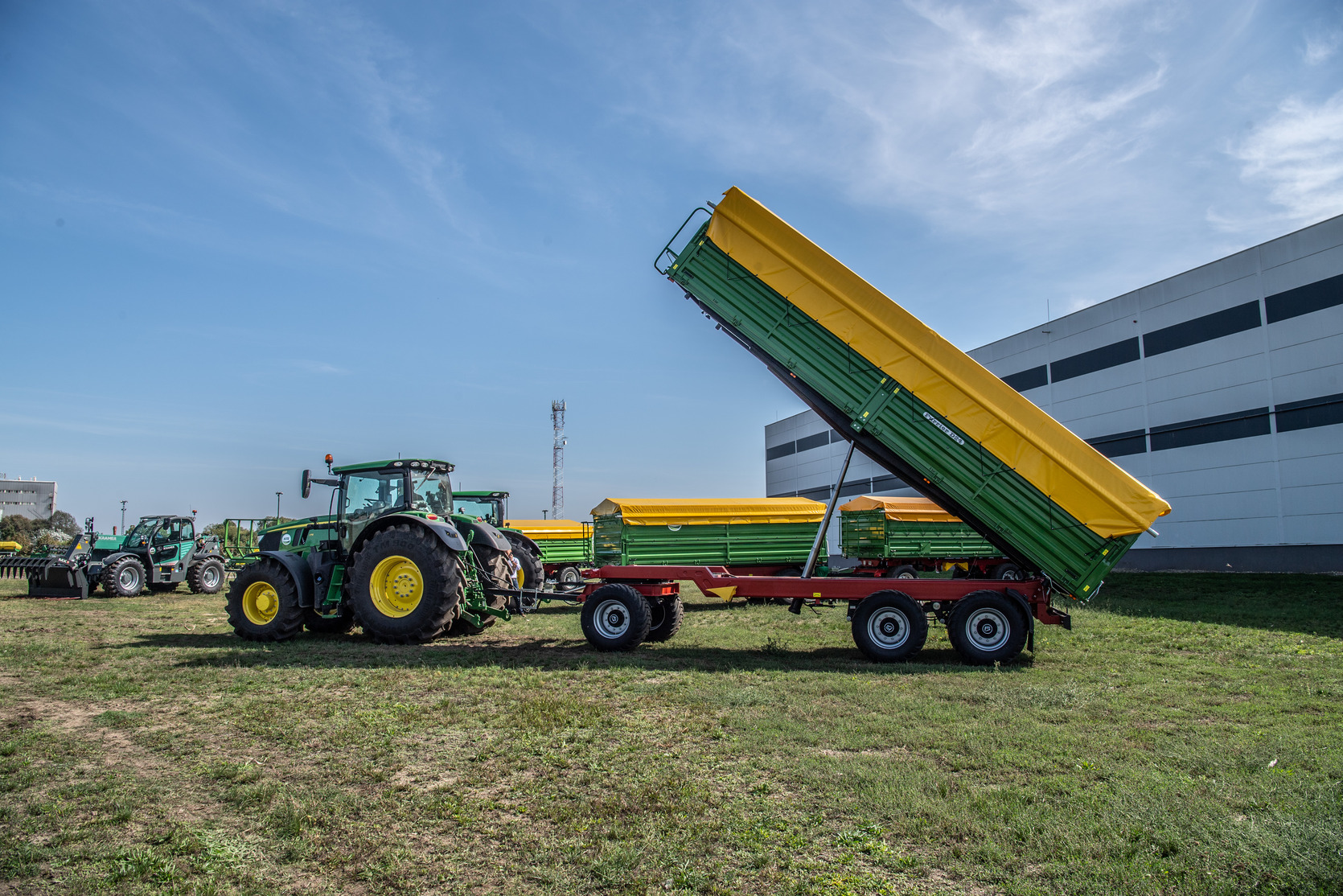

The FURRIER D24 is a heavy-duty, three-axle trailer designed for maximum load capacity, with a gross weight of 24,000 kg.

It features a reinforced platform, removable screw-in gate, and sidewalls with multiple opening systems. The trailer can be tipped in two directions and is equipped with a WABCO air brake system for safety. It has a large 30 m³ volume, making it suitable for transporting bulk materials. The trailer`s steel construction and durable paint ensure long-lasting performance.

Technical Data
Total length10210mm
Internal length7800mm
Towbar length2200mm
Distance between the coupling eye and the front axle3025mm
Internal height1600mm
Door height800mm
Height of extension800mm
Total height (with tarp support triangle)3245mm
Wheelbase14205mm
Wheelbase21360mm
Rear overhang1470mm
Platform height1320mm
Maximum height during side tipping4100mm
Maximum height during rear tipping7610mm
Towbar distance from the ground850mm
Track width1950mm
External width2550mm
Internal width2400mm
Rear door extension800mm
Net weight7120kg
Technically permissible load capacity16880kg
Gross weight24000kg
Number of axles3pcs
Volume30m³
Tires385/65 R22.5

Parameters

Parameters

Superstructure features:

  • Welded steel structure made of high-strength steel
  • Reinforced platform design
  • Removable screw-in gate
  • Reinforced sidewalls
  • Can be tipped in two directions (left, right)
  • Sidewalls with multiple opening systems (bottom sideopening system and top opening)
  • Podium-style superstructure with barriers
  • Removable extension
  • Tarp support with triangle
  • Foldable tarp support rod
  • Equipped with UV-resistant tarp

Chassis system:

  • Welded steel structure made of high-strength steel
  • ADR axles with drum brakes
  • Parabolic springs
  • Mudguards on the rear axle
  • JOST rotating hitch
  • LED lighting system
  • Rear underrun protection
  • Spare wheel holder (without spare wheel)

Hydraulic system:

  • Superstructure tipping in right, left, and rear directions
  • Tipping limit valve

Brake system:

  • WABCO two-circuit air brake system with automatic brake force regulator
  • Mechanical parking brake

Painting:

  • Paintwork in a professional paint booth with high-quality two-component German paints
  • Superstructure colour: RAL 6010 (John Deere green)
  • Chassis colour: RAL 3013 (red)
  • Platform colour: RAL 9005 (black)
  • Tarp colour: Yellow
